67keys rugged keyboard Usb Ps2 with Rear Panel Mount Sealed Touchpad

Product Categories
SHENZHEN PAC TECHNOLOGY CO., LTD.
Contact Now

67keys rugged keyboard Usb Ps2 with Rear Panel Mount Sealed Touchpad

USB PS2 : yes

keys : 67 keys

Brand Name : OEM

Model Number : P-392TP

Certification : CE, FCC, ROHS

Place of Origin : Made in China

MOQ : 1pc

Price : Negotiable

Payment Terms : TT, PayPal, Western Union

Supply Ability : 3000pcs per month

Delivery Time : 1-2 weeks

Packaging Details : Inner box plus outer carton

material : stiainless steel

customization : yes

touchpad : yes, included

waterproof keyboard : yes, IP65

panel mounting : rear panel mounting

rugged keyboard : yes

black color keyboard : optional

Contact Now

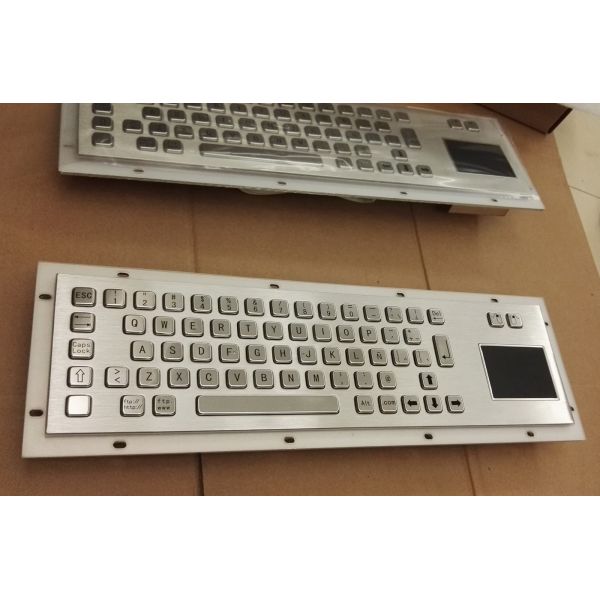

67 keys USB PS2 rear panel mounting mil keyboard with sealed touchpad and customization

  • 67keys rugged stainless steel keyboard
  • IP65 industrial vandal proof metal keyboard for kiosk, CNC application etc.
  • With rough sealed touchpad
  • Hole mounting solution, rear panel mounting
  • USB / PS2 avaialable
  • Any language layout available
  • Long key stroke with 2mm travel stroke,
  • Mounting Dimension: 392 x 110 mm
  • NEMA4, IK7
  • Key actuation force: 120g/1.18N
  • Customizable layout upon customers request
  • Net weight: 2.0kg
  • Operation temperature: -10℃ to +50℃, can be extended to -40℃ to +80℃
  • Storage temperature: -40℃ to +80℃

Specifications
Material Front panel & Keys: Brushed stainless steel
Back panel: Aluminum alloy
Touchpad: Synaptics high-sensitivity touchpad
Electrical Data Power supply voltage: DC 5 V 5%
Current rating: 20 mA
Touchpad resolution:1000dpi
Interface: USB or PS2
EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
FCC: Part 15, class B
Safety: EN 60950, CE compliant
Environmental Characteristics Operating temperature: -20 C to + 60 C
Storage temperature: - 40 C to + 80 C
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40 C: 21 days, IEC 60512-6
Dry heat test at + 85 C: 10 days, IEC 60512-6
Mechanical Data Actuation force for key:120±15g
Key travel: 2.0mm
Lifetime (cycles): Min 5, 000, 000 actuations
Sealing protection: IP65/NEMA4X from the front
Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4
Operation system PS2: Win NT4, 98SE, 98ME, 2000, XP
USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX
